Stybarrow Decommissioning and Field Management

Activity type Decommissioning, dismantling or removing a facility
Activity subtypes
Lifecycle Classification Decommissioning
Submitted by Woodside Energy (Australia) Pty Ltd
Submission date 18 August, 2015
Subtype New
Decision date 20 October, 2015
RMS ID 3296
Status Finalised
Outcome Accepted
Link to previously accepted EP 2255 - Stybarrow Decommissioning and Field Management
Contact

Project Manager
Corporate Affairs Manager
BHP Billiton Petroleum Pty Ltd
125 St Georges Terrace
PERTH WA 6000

bhppetexternalaffairs@bhp.com

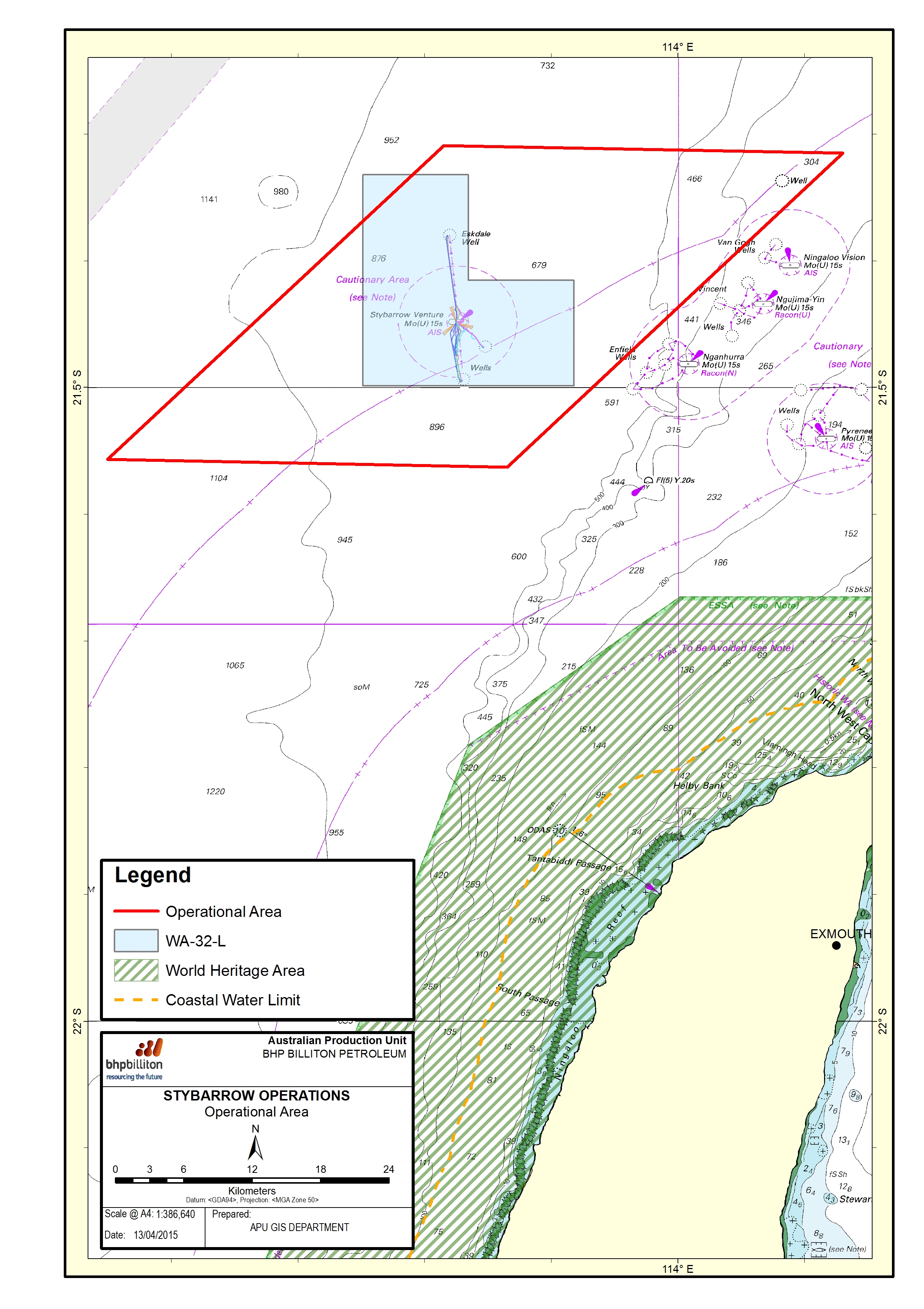

Location map (click to enlarge)
Location map - Activity: Stybarrow Decommissioning and Field Management (refer to description)
Description


The Stybarrow Facility produced crude oil from the Stybarrow and Eskdale reservoirs via a single stand-alone Floating Production Storage and Offloading Facility (FPSO). The Stybarrow Facility was located in Commonwealth waters approximately 51 km northwest of the North West Cape of Western Australia and approximately 30 km north-west of the northern boundary of Ningaloo Marine Park (Commonwealth Waters) and approximately 55km west-north-west of Exmouth (refer Figure 11).

Production from the Stybarrow Facility ceased in July 2015 and the vessel sailed away in August 2015. At the cessation of production, all wells were bullheaded and valves were pressure tested and closed. Flowlines were flushed with treated seawater until the OIW content was< 30 ppm. These activities were carried out under the Stybarrow Operations Environment Plan (STHSE-E-0001). This Environment Plan covers the activities during the cessation phase.

The Stybarrow field including wellheads, pipeline route and the gas-injection well remain protected from third party vessels and shipping activities by a restricted area. Gazetted exclusion and cautionary zones are marked on nautical charts surrounding the Stybarrow FPSO and subsea facilities of 500 m and 2.5 nm (4.6 km) respective ly under the Offshore OPGGSA (Part 6.6: "Safety zones  and the area to be avoided"}.

This EP describes BHP Billiton's proposed cessation activities located in Permit Area WA-32-L in Commonwealth waters (the Activity). The scope of the activities includes:
• The cessation phase where the wells, flowlines and other subsea infrastructure remain in-situ;
• Vessel-based activities including subsea inspections/ interventions;
• Vessel-based activities including subsea flowline cutting and plugging; and
• Vessel-based activities to disconnect and remove the spider buoy.

Other Details
Locations Pilbara
Commonwealth waters adjacent to Western Australia
Titles (or other instruments) WA-32-L
Current Documents (Finalised)
Location map
