Cliff Head Field Offshore Operations

Activity type Operation of a petroleum pipeline
Activity subtypes Any other petroleum-related activity
Other survey
Lifecycle Classification Operation & Production
Submitted by Triangle Energy (Operations) Pty Ltd
Submission date 22 March, 2017
Subtype Revision
Decision date 18 October, 2017
RMS ID 3951
Status Finalised
Outcome Accepted
Link to previously accepted EP 3664 - Cliff Head Field Offshore Operations

Stephen Gauld
Suite 2, Ground Floor
100 Havelock Street
+61 8 9219 7111

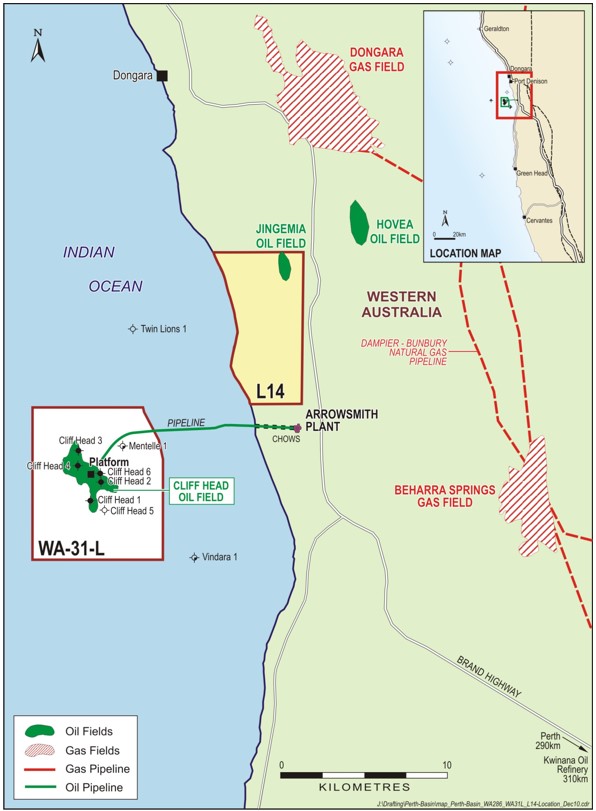

Location map (click to enlarge)
Location map - Activity: Cliff Head Field Offshore Operations (refer to description)

Production from the Cliff Head Oil Field Development involves transferring oil and produced formation water (PFW) from the offshore wellhead to the ASP via the offshore and onshore pipeline. At ASP, the PFW is removed from the product stream, the crude oil is stabilised and then transferred to road tankers and transported for refining.
This Environment Plan considers only the offshore components of the Cliff Head development, namely those that occur beyond the Commonwealth-State boundaries at 3nm from the coastline, these are:
An unmanned well head platform, Cliff Head Alpha (CHA) to accommodate the well heads and support equipment;
Eight well heads with the current arrangement of five production wells with electrical submersible pumps (ESPs) to enable artificial lifting of the produced fluid (i.e. crude oil and water), and three water injection wells;
An insulated subsea production pipeline, which transports the produced fluids from CHA to the onshore Arrowsmith Stabilisation Plant (ASP);
An insulated subsea water injection pipeline from ASP to the three injection wells at CHA; and
A subsea power and communication cable, and chemical supply umbilical running from ASP to CHA.
The production pipeline transports the produced fluids from the CHA to the ASP where oil is separated from the produced formation water (PFW). The PFW is then transported via the water injection pipeline to the injection wells, where it is then injected into the geological formation that hosts the hydrocarbon reservoir.
The offshore components of the pipelines that lie within Commonwealth waters are approximately 4.9 km in length and are operated under pipeline licence WA-12-PL, which is administered by National Offshore Petroleum Titles Administrator (NOPTA). The offshore components of the pipelines that lie within state waters (i.e. between the state waters limit and the mean low water mark) are approximately 6.9 km in length and are operated under pipeline licence TPL/18, which is administered by the Western Australian Department of Mines and Petroleum (DMP).
Note: This information and diagram map have been extracted from the environment plan submitted.
