Pyxis and Braastad Exploration Drilling

Activity type Drilling
Activity subtypes
Submitted by Woodside Energy Ltd
Submission date 23 October, 2014
Subtype New
Decision date 09 December, 2014
RMS ID 2950
Status Finalised
Outcome Accepted
Link to previously accepted EP
Contact

Tony Johnson
Manager Corporate Affairs
Woodside Energy Ltd
11 Mount Street
PERTH WA 6000
T: +61 9348 4000
E: tony.johnson@woodside.com.au

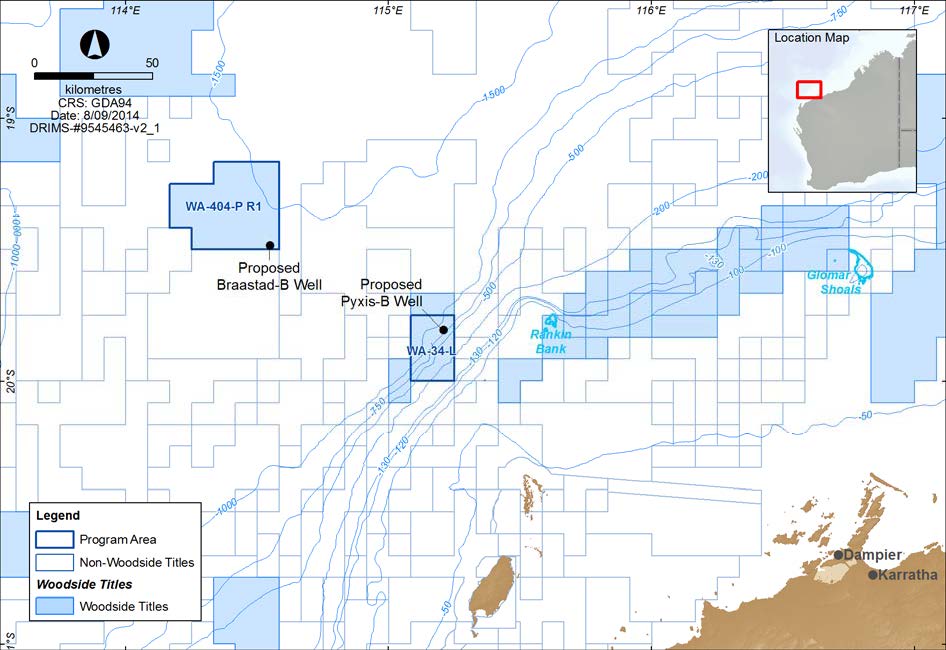

Location map (click to enlarge)
Location map - Activity: Pyxis and Braastad Exploration Drilling (refer to description)
Description


The purpose of the proposed Petroleum Activities Program is to explore for new commercial hydrocarbon resources. The exploration well drilling in WA-404-P (Braastad) is also a commitment under exploration permit area requirements, issued under the Offshore Petroleum Greenhouse Gas Storage Act 2006 (Cwth).
The proposed Petroleum Activities Program is located in production licence WA-34-L (Pyxis) and exploration permit WA-404-P (Braastad) in Commonwealth waters, located approximately 170 and 260 km (respectively) north-west of Dampier and approximately 66 and 137 km (respectively) north, north-west from the nearest shoreline (Montebello Islands).
The exploration wells will be drilled by either a semi-submersible drill rig that is moored or operates under dynamic positioning (DP) or a DP drillship, with associated support vessels.
Key activities are as follows:

Drilling of the top-hole sections using seawater with high viscosity sweeps


Installation and cementing of steel casing in the hole


Installation of the blow out preventer (BOP) on the wellhead and testing


Connection of a marine riser between the BOP and the drill rig/drillship to provide a closed loop system for the recirculation of drilling fluids and drill cuttings from the well to the drill rig/drillship


Drilling of bottom hole sections to the planned depth


Well evaluation using Vertical Seismic Profiling (VSP)


Further installation and cementing of steel casing/liners


On completion, plugging and abandonment of the well.

Drill cuttings generated during drilling of the top hole section will be discharged at the sea bed. For the bottom hole section, once the marine riser has been installed, drill cuttings will be discharged at the sea surface.
The reference drilling fluid case for the Petroleum Activities Program is a water based mud (WBM) drilling fluid system, however, a non-water-based mud (NWBM) drilling fluid system may be required to meet technical requirements for sections of the wells, if identified during detailed well design.
The Petroleum Activities Program is scheduled to commence in 2015. The current drilling sequence plan requires that only one well will be drilled at any given time (i.e. no planned concurrent drilling operations under the EP). The schedule and timeframe may be subject to change due to operational requirements and external influences such as MODU availability, weather conditions and oceanic conditions. The EP has risk assessed the drilling of gas wells throughout the year (all seasons) to provide  operational  flexibility  for  mobile  offshore  drilling  unit  (MODU)  schedule  changes  and availability.
Note: This information has been extracted from the EP Summary. Please refer to the attached EP Summary for more information.

Other Details
Locations Pilbara
Commonwealth waters adjacent to Western Australia
Titles (or other instruments) WA-404-P
WA-34-L
Current Documents (Finalised)
EP Document


Location map
